Product name: 1 Flute Down Cut End Mill With Coating
Product material: Solid Tungsten Carbide
Tips: Prices fluctuate with raw materials and exchange rates, leave your contact information, the first time to give you a latest quotation.
Product Spesification

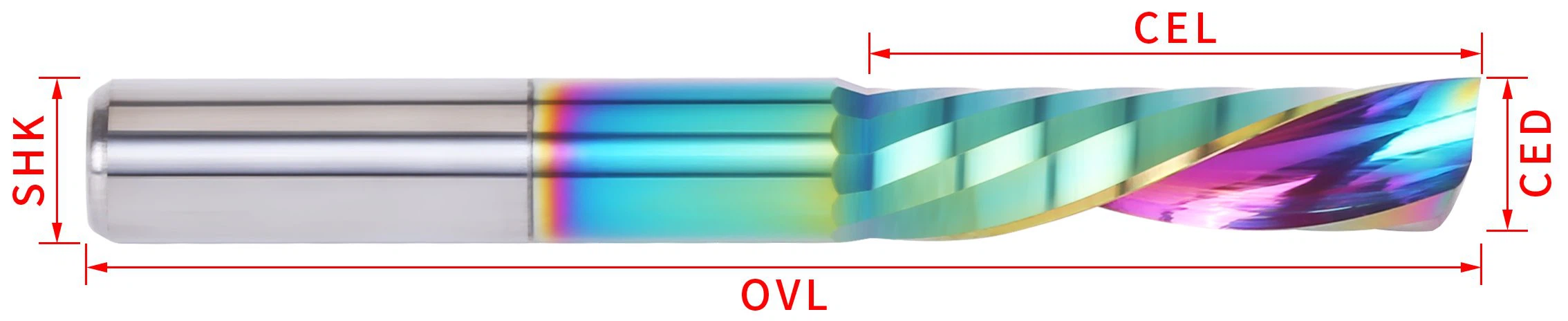

| NO | SHK | CED | CEL | OVL |
| krxcncs1-4-1 | 3.175 | 1 | 3 | 38.5 |
| krxcncs1-4-2 | 3.175 | 1.5 | 4 | 38.5 |
| krxcncs1-4-3 | 3.175 | 1.5 | 7 | 38.5 |
| krxcncs1-4-4 | 3.175 | 1.5 | 12 | 38.5 |
| krxcncs1-4-5 | 3.175 | 2 | 4 | 38.5 |
| krxcncs1-4-6 | 3.175 | 2 | 6 | 38.5 |
| krxcncs1-4-7 | 3.175 | 2 | 8 | 38.5 |
| krxcncs1-4-8 | 3.175 | 2 | 12 | 38.5 |
| krxcncs1-4-9 | 3.175 | 2 | 15 | 38.5 |
| krxcncs1-4-10 | 3.175 | 2 | 17 | 38.5 |
| krxcncs1-4-11 | 3.175 | 2.5 | 6 | 38.5 |
| krxcncs1-4-12 | 3.175 | 2.5 | 8 | 38.5 |
| krxcncs1-4-13 | 3.175 | 2.5 | 12 | 38.5 |
| krxcncs1-4-14 | 3.175 | 2.5 | 17 | 38.5 |
| krxcncs1-4-15 | 3.175 | 3.175 | 8 | 38.5 |
| krxcncs1-4-16 | 3.175 | 3.175 | 12 | 38.5 |
| krxcncs1-4-17 | 3.175 | 3.175 | 15 | 38.5 |
| krxcncs1-4-18 | 3.175 | 3.175 | 17 | 38.5 |
| krxcncs1-4-19 | 3.175 | 3.175 | 22 | 45 |
| krxcncs1-4-20 | 3.175 | 3.175 | 25 | 50 |
| krxcncs1-4-21 | 3.175 | 3.175 | 28 | 50 |
| krxcncs1-4-22 | 3.175 | 3.175 | 32 | 55 |
| krxcncs1-4-23 | 4 | 4 | 12 | 45 |
| krxcncs1-4-24 | 4 | 4 | 15 | 45 |
| krxcncs1-4-25 | 4 | 4 | 17 | 45 |
| krxcncs1-4-26 | 4 | 4 | 22 | 45 |
| krxcncs1-4-27 | 4 | 4 | 25 | 50 |
| krxcncs1-4-28 | 4 | 4 | 28 | 50 |
| krxcncs1-4-29 | 4 | 4 | 32 | 55 |
| krxcncs1-4-30 | 5 | 5 | 12 | 50 |
| krxcncs1-4-31 | 5 | 5 | 17 | 50 |
| krxcncs1-4-32 | 5 | 5 | 22 | 50 |
| krxcncs1-4-33 | 5 | 5 | 25 | 50 |
| krxcncs1-4-34 | 5 | 5 | 28 | 55 |
| krxcncs1-4-35 | 5 | 5 | 32 | 55 |
| krxcncs1-4-36 | 6 | 6 | 17 | 50 |
| krxcncs1-4-37 | 6 | 6 | 22 | 50 |
| krxcncs1-4-38 | 6 | 6 | 25 | 50 |
| krxcncs1-4-39 | 6 | 6 | 32 | 60 |
| krxcncs1-4-40 | 6 | 6 | 42 | 75 |
| krxcncs1-4-41 | 8 | 8 | 25 | 60 |
| krxcncs1-4-42 | 8 | 8 | 32 | 65 |
| krxcncs1-4-43 | 8 | 8 | 42 | 75 |
Product application:
Suitable for cutting acrylic, PVC, MDF, plastic board, solid wood board, etc.
Suitable for CNC Mahcine Tool, Advertising engraving Machine etc.
Product advantages:
1, The raw material imported from Germany, sharp and wear-resistant, not easy breaking.
2, Mirror Edge grinding process,cleaning surface.
3, Large row of cutting groove, smooth chip removal.
4, High wear resistance, high quality guarantee.
5, Sharp edge, wear-resistant, non-stick knife, no odor, quiet, high effciency.
