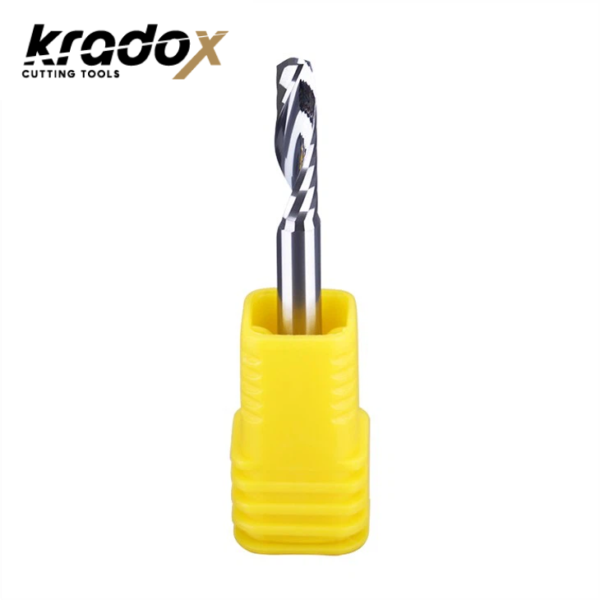

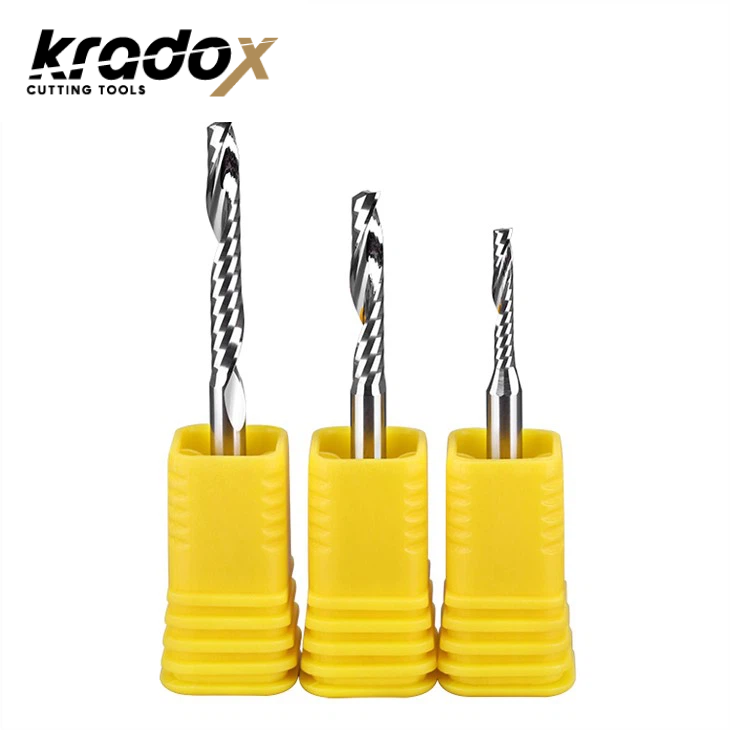

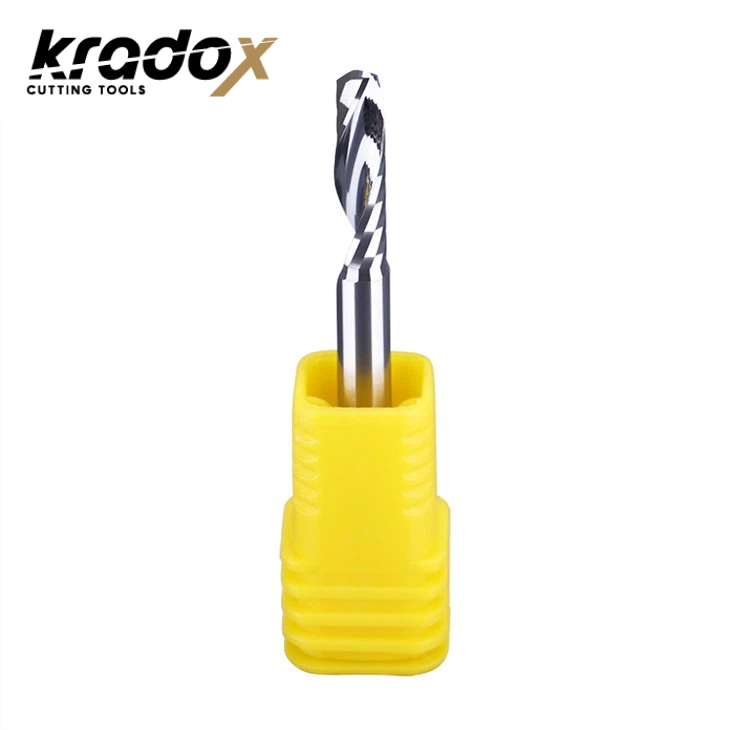

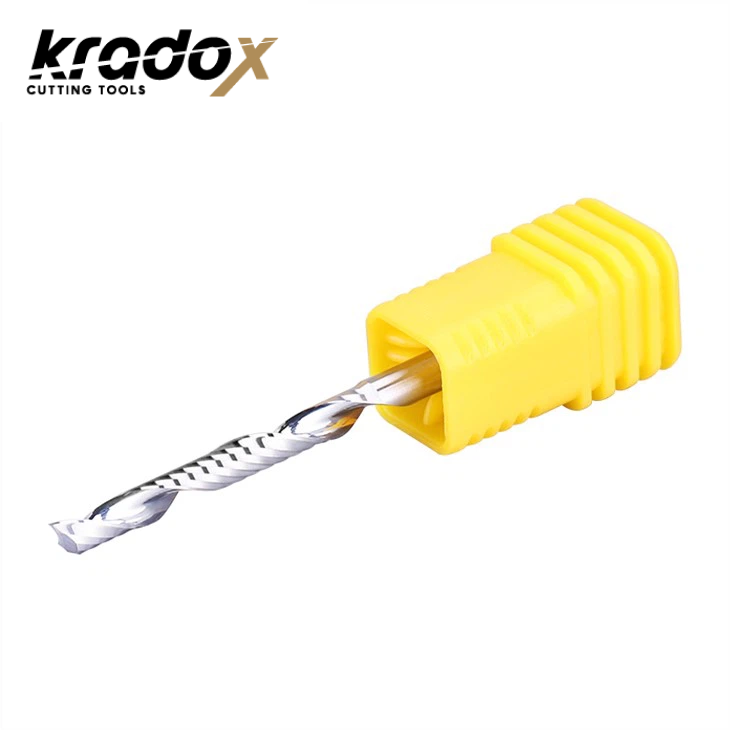

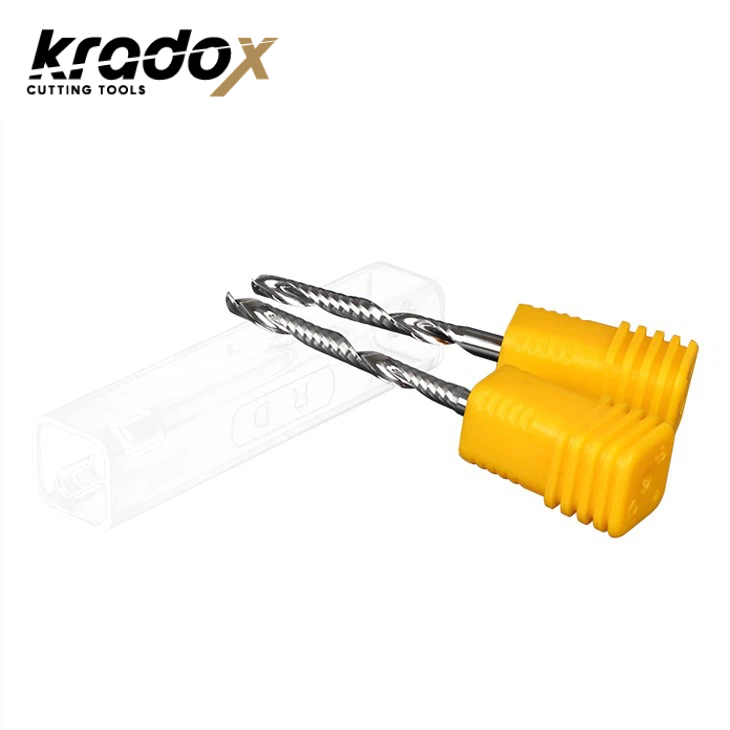

Product name: 1 Flute Upcut End Mill
Product material: Tungsten carbide
Tips: Prices fluctuate with raw materials and exchange rates, leave your contact information, the first time to give you a latest quotation.
Product Spesification

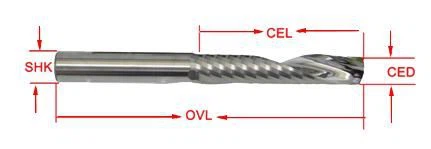

| NO | SHK | CED | CEL | OVL |
| krxcncs1-5-1 | 3.175 | 1 | 3 | 38.5 |
| krxcncs1-5-2 | 3.175 | 1 | 4 | 38.5 |
| krxcncs1-5-3 | 3.175 | 1.5 | 4 | 38.5 |
| krxcncs1-5-4 | 3.175 | 1.5 | 7 | 38.5 |
| krxcncs1-5-5 | 3.175 | 1.5 | 12 | 38.5 |
| krxcncs1-5-6 | 3.175 | 2 | 4 | 38.5 |
| krxcncs1-5-7 | 3.175 | 2 | 6 | 38.5 |
| krxcncs1-5-8 | 3.175 | 2 | 8 | 38.5 |
| krxcncs1-5-9 | 3.175 | 2 | 10 | 38.5 |
| krxcncs1-5-10 | 3.175 | 2 | 12 | 38.5 |
| krxcncs1-5-11 | 3.175 | 2 | 15 | 38.5 |
| krxcncs1-5-12 | 3.175 | 2 | 17 | 38.5 |
| krxcncs1-5-13 | 3.175 | 2 | 22 | 45 |
| krxcncs1-5-14 | 3.175 | 2.5 | 4 | 38.5 |
| krxcncs1-5-15 | 3.175 | 2.5 | 6 | 38.5 |
| krxcncs1-5-16 | 3.175 | 2.5 | 8 | 38.5 |
| krxcncs1-5-17 | 3.175 | 2.5 | 10 | 38.5 |
| krxcncs1-5-18 | 3.175 | 2.5 | 12 | 38.5 |
| krxcncs1-5-19 | 3.175 | 2.5 | 15 | 38.5 |
| krxcncs1-5-20 | 3.175 | 2.5 | 17 | 38.5 |
| krxcncs1-5-21 | 3.175 | 2.5 | 22 | 45 |
| krxcncs1-5-22 | 3.175 | 3.175 | 6 | 38.5 |
| krxcncs1-5-23 | 3.175 | 3.175 | 8 | 38.5 |
| krxcncs1-5-24 | 3.175 | 3.175 | 10 | 38.5 |
| krxcncs1-5-25 | 3.175 | 3.175 | 12 | 38.5 |
| krxcncs1-5-26 | 3.175 | 3.175 | 15 | 38.5 |
| krxcncs1-5-27 | 3.175 | 3.175 | 17 | 38.5 |
| krxcncs1-5-28 | 3.175 | 3.175 | 20 | 45 |
| krxcncs1-5-29 | 3.175 | 3.175 | 22 | 45 |
| krxcncs1-5-30 | 3.175 | 3.175 | 25 | 50 |
| krxcncs1-5-31 | 3.175 | 3.175 | 28 | 50 |
| krxcncs1-5-32 | 3.175 | 3.175 | 32 | 55 |
| krxcncs1-5-33 | 3.175 | 3.175 | 42 | 70 |
| krxcncs1-5-34 | 3.175 | 3.175 | 52 | 75 |
| krxcncs1-5-35 | 4 | 4 | 8 | 45 |
| krxcncs1-5-36 | 4 | 4 | 12 | 45 |
| krxcncs1-5-37 | 4 | 4 | 15 | 45 |
| krxcncs1-5-38 | 4 | 4 | 17 | 45 |
| krxcncs1-5-39 | 4 | 4 | 22 | 45 |
| krxcncs1-5-40 | 4 | 4 | 25 | 50 |
| krxcncs1-5-41 | 4 | 4 | 28 | 50 |
| krxcncs1-5-42 | 4 | 4 | 32 | 55 |
| krxcncs1-5-43 | 4 | 4 | 42 | 70 |
| krxcncs1-5-44 | 4 | 4 | 52 | 75 |
| krxcncs1-5-45 | 5 | 5 | 12 | 50 |
| krxcncs1-5-46 | 5 | 5 | 17 | 50 |
| krxcncs1-5-47 | 5 | 5 | 22 | 50 |
| krxcncs1-5-48 | 5 | 5 | 25 | 50 |
| krxcncs1-5-49 | 5 | 5 | 28 | 55 |
| krxcncs1-5-50 | 5 | 5 | 32 | 55 |
| krxcncs1-5-51 | 5 | 5 | 42 | 70 |
| krxcncs1-5-52 | 5 | 5 | 52 | 80 |
| krxcncs1-5-53 | 6 | 6 | 12 | 50 |
| krxcncs1-5-54 | 6 | 6 | 15 | 50 |
| krxcncs1-5-55 | 6 | 6 | 17 | 50 |
| krxcncs1-5-56 | 6 | 6 | 22 | 50 |
| krxcncs1-5-57 | 6 | 6 | 25 | 50 |
| krxcncs1-5-58 | 6 | 6 | 28 | 60 |
| krxcncs1-5-59 | 6 | 6 | 32 | 60 |
| krxcncs1-5-60 | 6 | 6 | 42 | 70 |
| krxcncs1-5-61 | 6 | 6 | 52 | 80 |
| krxcncs1-5-62 | 6 | 6 | 62 | 100 |
| krxcncs1-5-63 | 8 | 8 | 22 | 60 |
| krxcncs1-5-64 | 8 | 8 | 25 | 60 |
| krxcncs1-5-65 | 8 | 8 | 32 | 60 |
| krxcncs1-5-66 | 8 | 8 | 42 | 75 |
| krxcncs1-5-67 | 8 | 8 | 52 | 90 |
| krxcncs1-5-68 | 8 | 8 | 62 | 100 |
| krxcncs1-5-69 | 10 | 10 | 32 | 75 |
| krxcncs1-5-70 | 10 | 10 | 42 | 85 |
| krxcncs1-5-71 | 10 | 10 | 52 | 100 |
| krxcncs1-5-72 | 10 | 10 | 62 | 120 |
| krxcncs1-5-73 | 12 | 12 | 32 | 75 |
| krxcncs1-5-74 | 12 | 12 | 42 | 85 |
| krxcncs1-5-75 | 12 | 12 | 52 | 100 |
| krxcncs1-5-76 | 12 | 12 | 62 | 120 |
Product application:
Cutting Acrylic, PVC, Plastic, PP board, solid wood, Multilayer plywood, MDF, Nylon, Resin, ABS.
Applicable machines: Engraving machine, precision engraving machine, CNC machine.
Product advantages:
1, Selection of high quality steel material. High hardness. A longer tool life, not easy to break, precise.
2, Excellent edge-grinding technology. Upcut can be used to plunge cut.
3, Super high polished cutting edge with unique mirror finsh, resulting in clean cutting, less chance of chip re-welding.
4, Special high grade’o’ flute ground carbide for fast and smooth cuts in woods and plastics.
5, The spiral angle of 25 degree is not easy to damage the surface of a carved object.
6, Large amount of chip removal, fast cuttig speed and efficient work.
