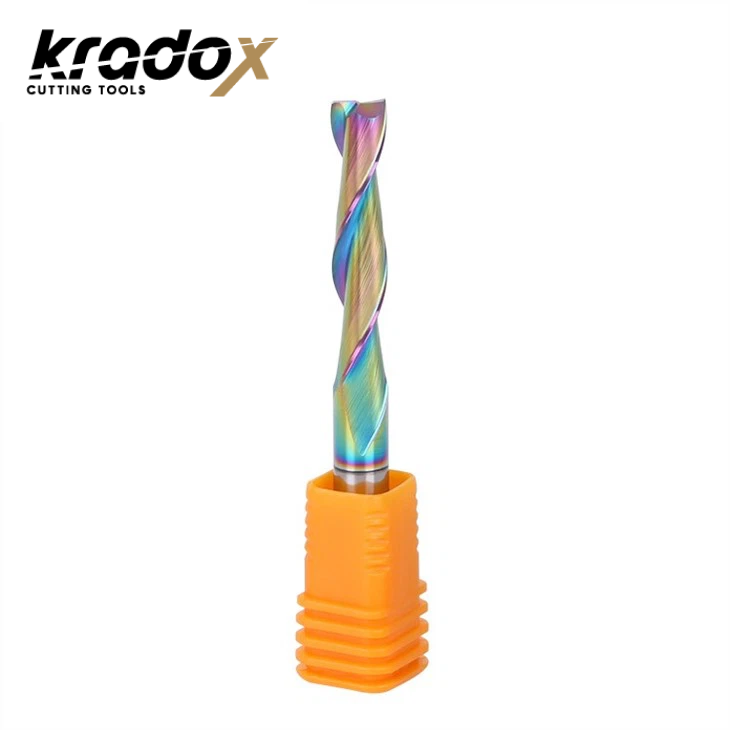

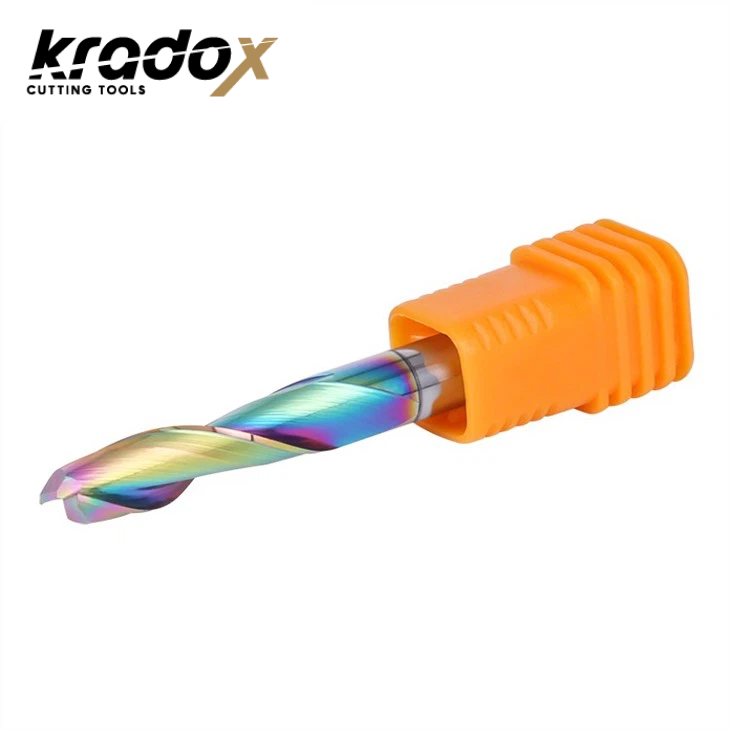

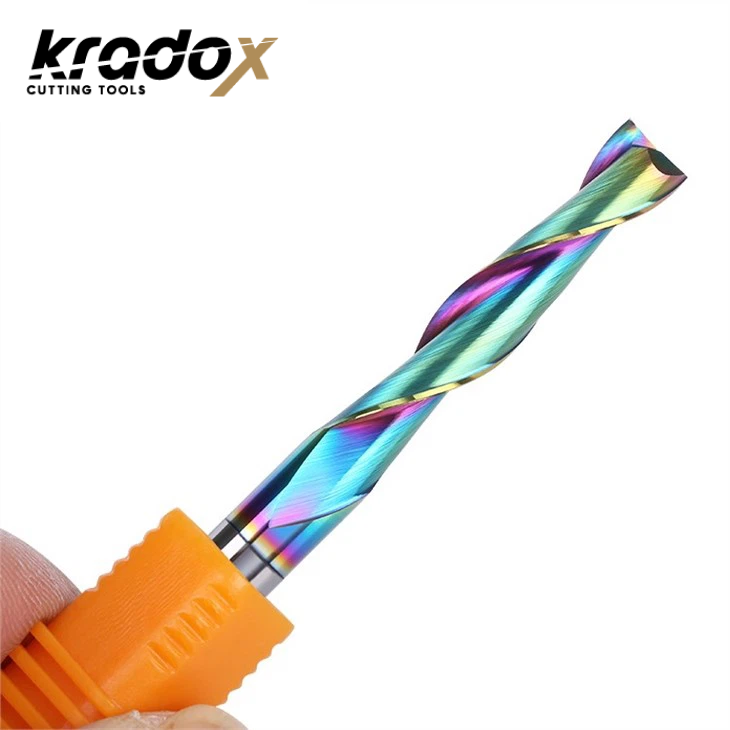

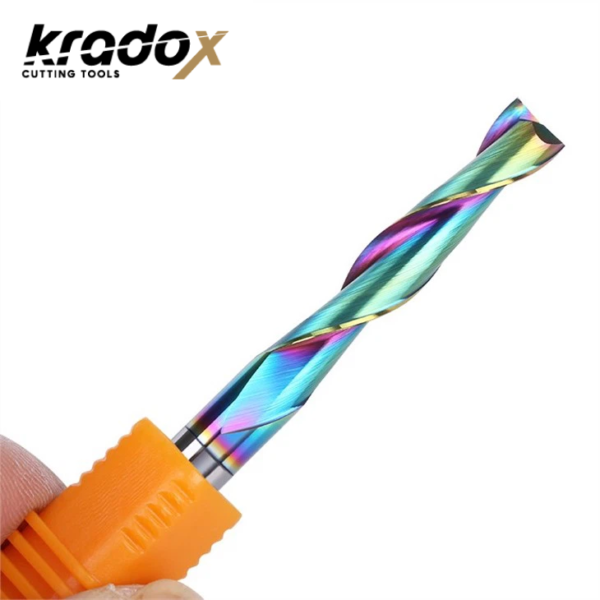

Product name: 2 Flute Carbide End Mill
Product material: Tungsten steel alloy
Tips: Prices fluctuate with raw materials and exchange rates, leave your contact information, the first time to give you a latest quotation.

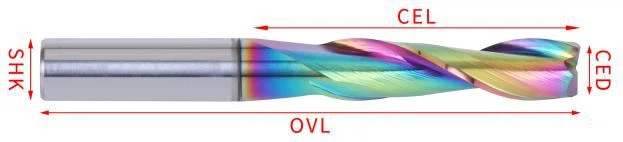

Product Spesification
| SHK | CED | CEL | OVL | |
| krxcncs2-6-1 | 3.175 | 3.175 | 8 | 38.5 |
| krxcncs2-6-2 | 3.175 | 3.175 | 12 | 38.5 |
| krxcncs2-6-3 | 3.175 | 3.175 | 15 | 38.5 |
| krxcncs2-6-4 | 3.175 | 3.175 | 17 | 38.5 |
| krxcncs2-6-5 | 3.175 | 3.175 | 22 | 38.5 |
| krxcncs2-6-6 | 3.175 | 3.175 | 25 | 45 |
| krxcncs2-6-7 | 3.175 | 3.175 | 28 | 45 |
| krxcncs2-6-8 | 3.175 | 3.175 | 32 | 50 |
| krxcncs2-6-9 | 3.175 | 3.175 | 42 | 65 |
| krxcncs2-6-10 | 3.175 | 3.175 | 52 | 75 |
| krxcncs2-6-11 | 3.175 | 1 | 4 | 38.5 |
| krxcncs2-6-12 | 3.175 | 1.5 | 6 | 38.5 |
| krxcncs2-6-13 | 3.175 | 1.5 | 8 | 38.5 |
| krxcncs2-6-14 | 3.175 | 1.5 | 12 | 38.5 |
| krxcncs2-6-15 | 3.175 | 2 | 8 | 38.5 |
| krxcncs2-6-16 | 3.175 | 2 | 12 | 38.5 |
| krxcncs2-6-17 | 3.175 | 2 | 15 | 38.5 |
| krxcncs2-6-18 | 3.175 | 2 | 17 | 38.5 |
| krxcncs2-6-19 | 3.175 | 2 | 22 | 45 |
| krxcncs2-6-20 | 3.175 | 2.5 | 8 | 38.5 |
| krxcncs2-6-21 | 3.175 | 2.5 | 12 | 38.5 |
| krxcncs2-6-22 | 3.175 | 2.5 | 15 | 38.5 |
| krxcncs2-6-23 | 3.175 | 2.5 | 17 | 38.5 |
| krxcncs2-6-24 | 3.175 | 2.5 | 22 | 45 |
| krxcncs2-6-25 | 4 | 4 | 8 | 45 |
| krxcncs2-6-26 | 4 | 4 | 12 | 45 |
| krxcncs2-6-27 | 4 | 4 | 15 | 45 |
| krxcncs2-6-28 | 4 | 4 | 17 | 45 |
| krxcncs2-6-29 | 4 | 4 | 22 | 45 |
| krxcncs2-6-30 | 4 | 4 | 25 | 45 |
| krxcncs2-6-31 | 4 | 4 | 28 | 50 |
| krxcncs2-6-32 | 4 | 4 | 32 | 55 |
| krxcncs2-6-33 | 4 | 4 | 42 | 70 |
| krxcncs2-6-34 | 4 | 4 | 52 | 80 |
| krxcncs2-6-35 | 5 | 5 | 17 | 50 |
| krxcncs2-6-36 | 5 | 5 | 22 | 50 |
| krxcncs2-6-37 | 5 | 5 | 25 | 50 |
| krxcncs2-6-38 | 5 | 5 | 28 | 55 |
| krxcncs2-6-39 | 5 | 5 | 32 | 55 |
| krxcncs2-6-40 | 6 | 6 | 12 | 50 |
| krxcncs2-6-41 | 6 | 6 | 17 | 50 |
| krxcncs2-6-42 | 6 | 6 | 22 | 50 |
| krxcncs2-6-43 | 6 | 6 | 25 | 50 |
| krxcncs2-6-44 | 6 | 6 | 28 | 60 |
| krxcncs2-6-45 | 6 | 6 | 32 | 60 |
| krxcncs2-6-46 | 6 | 6 | 42 | 70 |
| krxcncs2-6-47 | 6 | 6 | 52 | 80 |
| krxcncs2-6-48 | 6 | 6 | 62 | 100 |
| krxcncs2-6-49 | 8 | 8 | 25 | 60 |
| krxcncs2-6-50 | 8 | 8 | 32 | 60 |
| krxcncs2-6-51 | 8 | 8 | 42 | 75 |
| krxcncs2-6-52 | 8 | 8 | 52 | 85 |
| krxcncs2-6-53 | 10 | 10 | 32 | 75 |
| krxcncs2-6-54 | 10 | 10 | 42 | 85 |
| krxcncs2-6-55 | 10 | 10 | 52 | 100 |
| krxcncs2-6-56 | 10 | 10 | 62 | 110 |
Product application:
Cutting Nylon, Resin, ABS, Acrylic, PVC, MDF, hardwood and other three-dimensional sculptures, surface machining, etc.
Product Advantages
1, Integral tungsten steel, mirror grinding process. High hardness, high wear resistance, sharp and not easy to break.
2, Germany five axis CNC grinding machine. High processing precision, sharp non-stick cutters, high cutting smoothness.
3, Larger chip removal tank design, faster chip removal, higher operation efficiency.

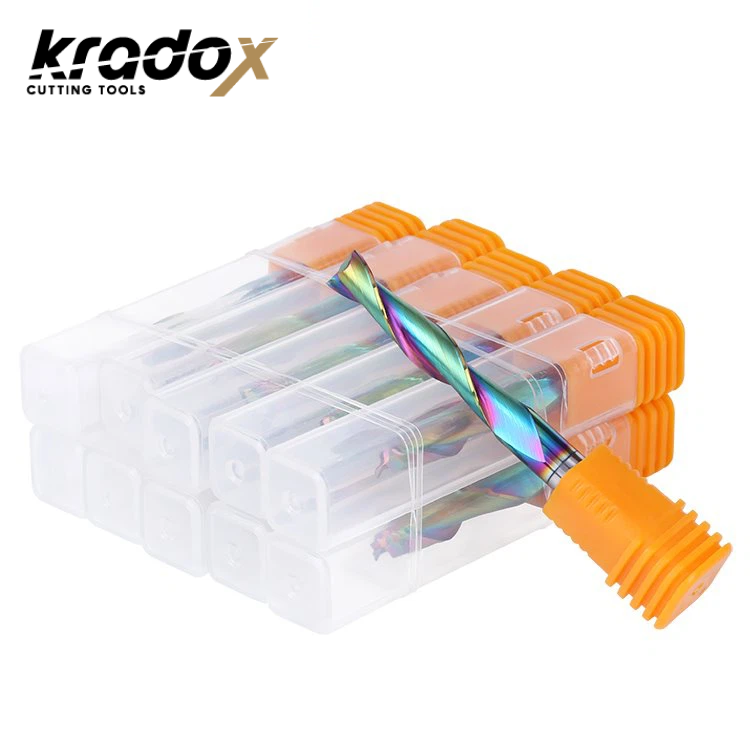

4, Independent packaging, better protection of cutters.
5, DLC coating can not only prolong the service life of products, but also attract more customers.
