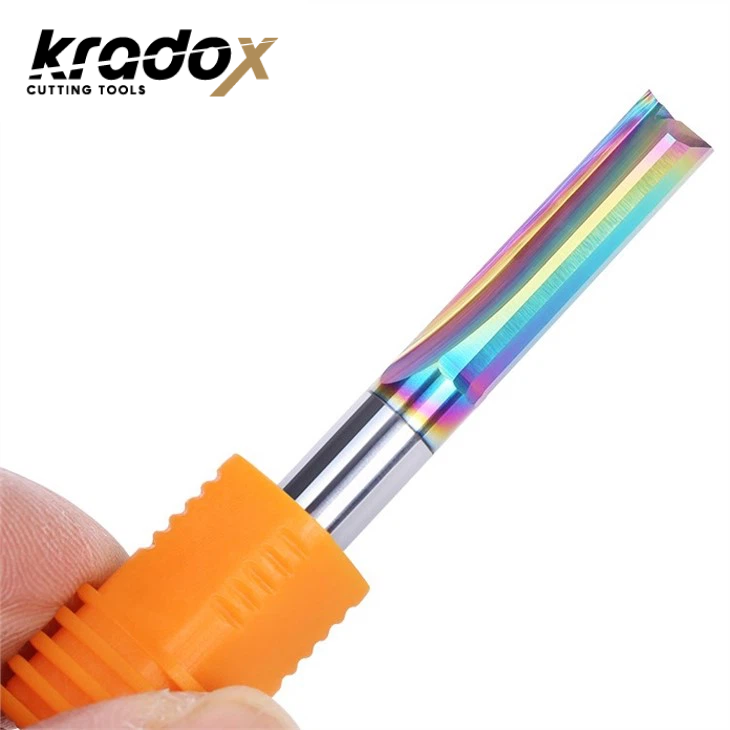

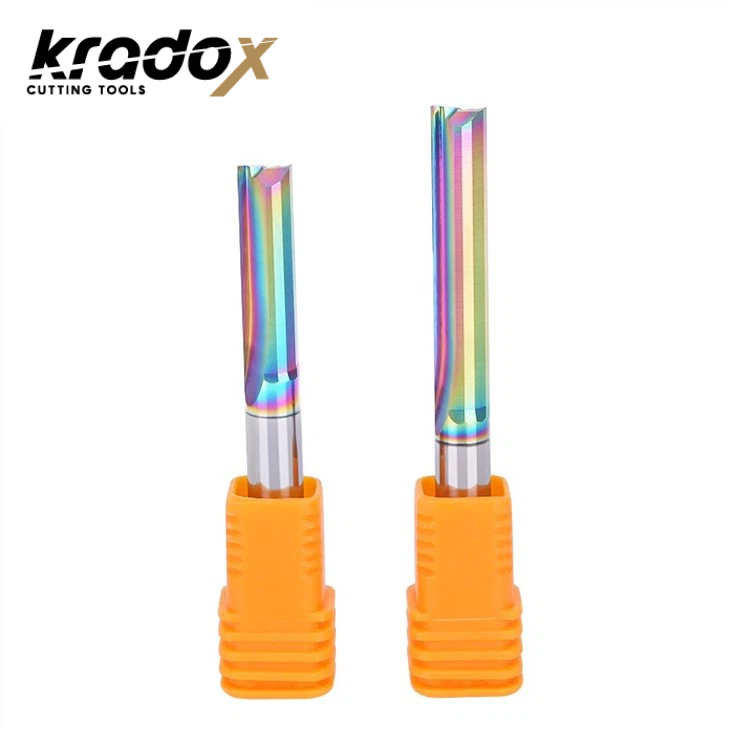

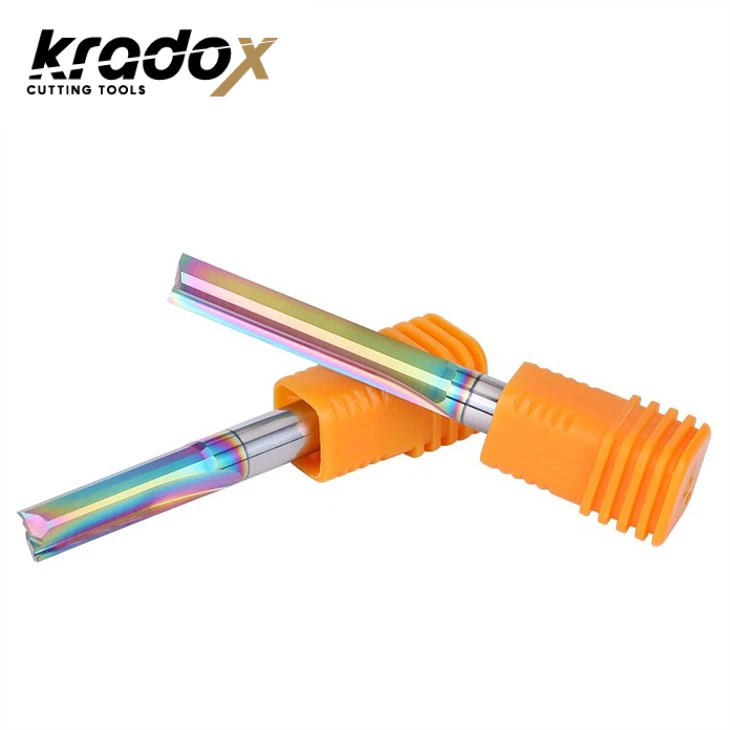

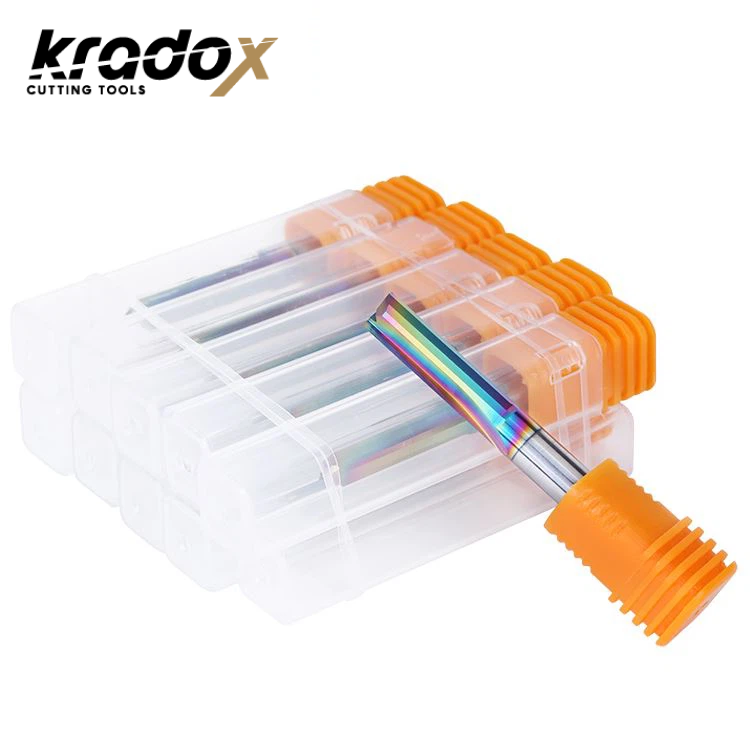

Product name: 2 Flute Straight End Mill
Product material: Solid carbide
Tips: Prices fluctuate with raw materials and exchange rates, leave your contact information, the first time to give you a latest quotation.
Product Spesification

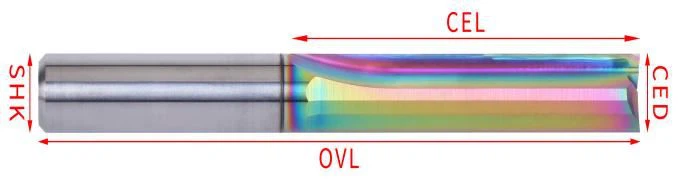

SHK | CED | CEL | OVL | |
krxcncs2-9-1 | 3.175 | 3.175 | 8 | 38.5 |
krxcncs2-9-2 | 3.175 | 3.175 | 12 | 38.5 |
krxcncs2-9-3 | 3.175 | 3.175 | 15 | 38.5 |
krxcncs2-9-4 | 3.175 | 3.175 | 17 | 38.5 |
krxcncs2-9-5 | 3.175 | 3.175 | 22 | 45 |
krxcncs2-9-6 | 3.175 | 3.175 | 25 | 50 |
krxcncs2-9-7 | 3.175 | 3.175 | 28 | 50 |
krxcncs2-9-8 | 3.175 | 3.175 | 32 | 55 |
krxcncs2-9-9 | 3.175 | 1 | 3 | 38.5 |
krxcncs2-9-10 | 3.175 | 1.5 | 4 | 38.5 |
krxcncs2-9-11 | 3.175 | 1.5 | 7 | 38.5 |
krxcncs2-9-12 | 3.175 | 1.5 | 12 | 38.5 |
krxcncs2-9-13 | 3.175 | 2 | 6 | 38.5 |
krxcncs2-9-14 | 3.175 | 2 | 8 | 38.5 |
krxcncs2-9-15 | 3.175 | 2 | 12 | 38.5 |
krxcncs2-9-16 | 3.175 | 2 | 17 | 38.5 |
krxcncs2-9-17 | 3.175 | 2.5 | 8 | 38.5 |
krxcncs2-9-18 | 3.175 | 2.5 | 12 | 38.5 |
krxcncs2-9-19 | 3.175 | 2.5 | 15 | 38.5 |
krxcncs2-9-20 | 3.175 | 2.5 | 17 | 38.5 |
krxcncs2-9-21 | 3.175 | 2.5 | 22 | 45 |
krxcncs2-9-22 | 4 | 4 | 12 | 45 |
krxcncs2-9-23 | 4 | 4 | 17 | 45 |
krxcncs2-9-24 | 4 | 4 | 22 | 45 |
krxcncs2-9-25 | 4 | 4 | 25 | 45 |
krxcncs2-9-26 | 4 | 4 | 28 | 50 |
krxcncs2-9-27 | 4 | 4 | 32 | 55 |
krxcncs2-9-28 | 4 | 4 | 42 | 65 |
krxcncs2-9-29 | 6 | 6 | 17 | 50 |
krxcncs2-9-30 | 6 | 6 | 22 | 50 |
krxcncs2-9-31 | 6 | 6 | 25 | 50 |
krxcncs2-9-32 | 6 | 6 | 28 | 60 |
krxcncs2-9-33 | 6 | 6 | 32 | 60 |
krxcncs2-9-34 | 6 | 6 | 42 | 70 |
krxcncs2-9-35 | 6 | 6 | 52 | 80 |
krxcncs2-9-36 | 6 | 6 | 62 | 100 |
krxcncs2-9-37 | 8 | 8 | 25 | 60 |
krxcncs2-9-38 | 8 | 8 | 32 | 60 |
krxcncs2-9-39 | 8 | 8 | 42 | 75 |
krxcncs2-9-40 | 8 | 8 | 52 | 90 |
krxcncs2-9-41 | 8 | 8 | 62 | 100 |
krxcncs2-9-42 | 10 | 10 | 32 | 75 |
krxcncs2-9-43 | 10 | 10 | 42 | 80 |
krxcncs2-9-44 | 10 | 10 | 52 | 100 |
krxcncs2-9-45 | 10 | 10 | 62 | 110 |
Product application:
2D engraving cutting, MDF, hardwood, acrylic.
Product advantages:
1, The tungsten steel cutter body is specifically for CNC engraving machine processing MDF material, combined with hard cutter body and advanced blade. Durable and strong.
2, Imported high precision grinding machine, fine polishing processing.
3, Clean surface, no burrs, cost-effective.
4, High strength, super wear resistance, not easy to break.
5, We came to the conclusion by experiment. DLC coating can have a 50% longer life, and is more attractive to customers.
