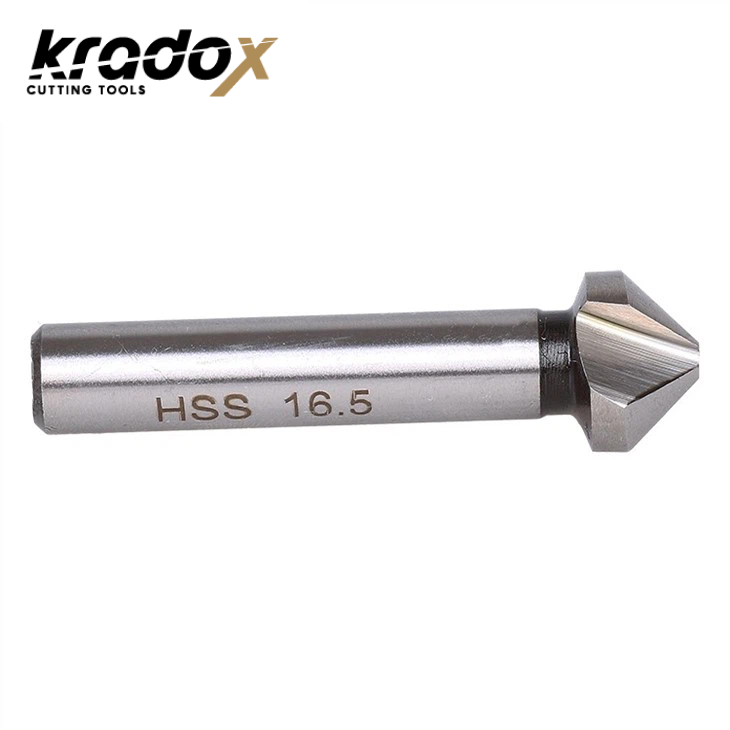

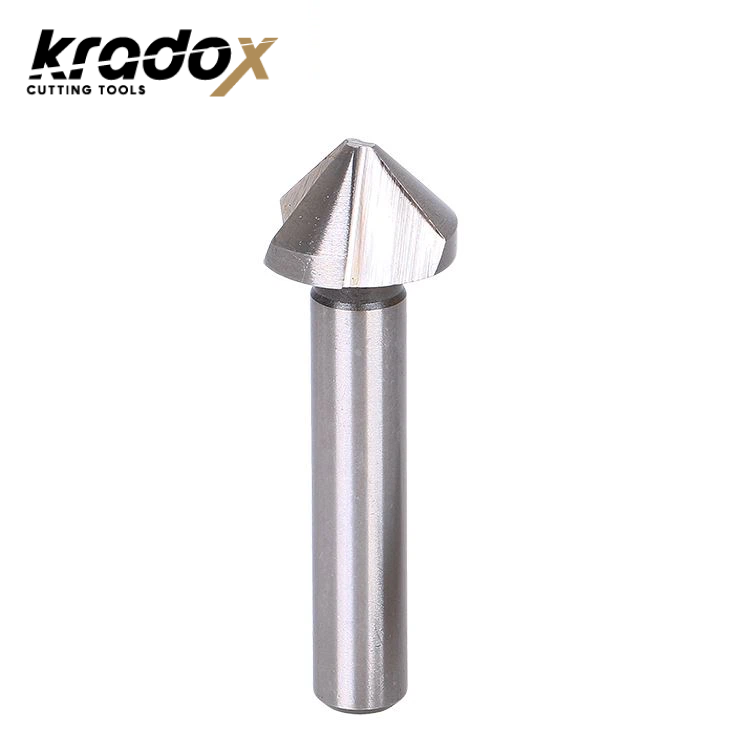

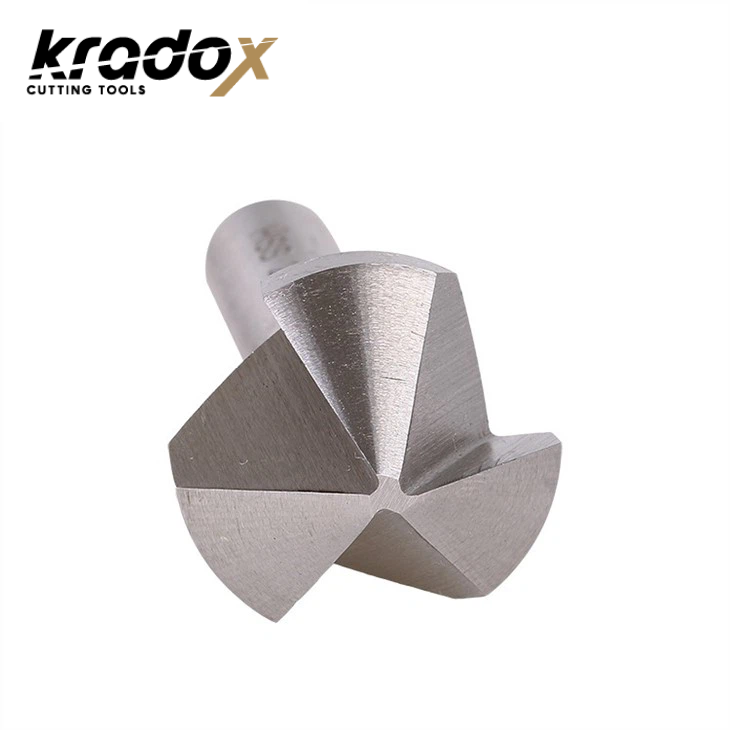

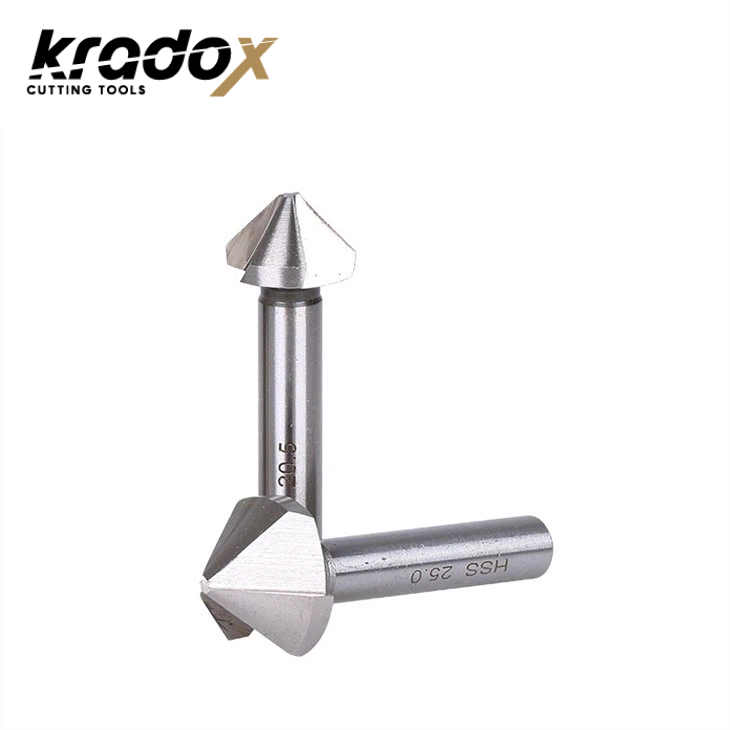

Product name: 3 Flute Chamfer Mill
Product material: High speed steel
Tips: Prices fluctuate with raw materials and exchange rates, leave your contact information, the first time to give you a latest quotation.
Product Spesification

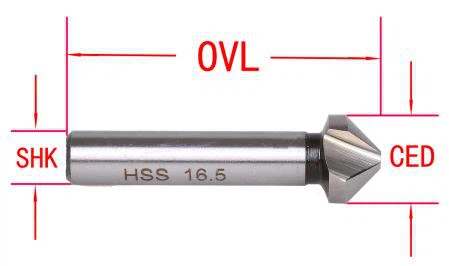

| NO | SHK | CED | ANGLE | OVL |
| krxcncs7-2-1 | 5 | 6.3 | 90 | 45 |
| krxcncs7-2-2 | 6 | 8.3 | 90 | 50 |
| krxcncs7-2-3 | 6 | 10.4 | 90 | 50 |
| krxcncs7-2-4 | 8 | 12.4 | 90 | 56 |
| krxcncs7-2-5 | 10 | 16.5 | 90 | 60 |
| krxcncs7-2-6 | 10 | 20.5 | 90 | 63 |
| krxcncs7-2-7 | 10 | 25 | 90 | 67 |
| krxcncs7-2-8 | 12 | 30 | 90 | 71 |
Product application:
Carbon steel, alloy steel, tool steel, stainless steel, cast iron, aluminum alloy and non-ferrous metals, etc.
Product advantages:
1, Selected high quality high speed steel, after high temperature quenching treatment has a long life.
2, Chamfering knife adopts positioning center design to ensure that the center point will not deviate, accurate chamfering.
3, Machining center high precision manufacturing, accurate Angle concentricity, smooth chamfering.
4, In the processing of both edge strength and sharp, the use of large core diameter, increases the rigidity of the tool
