Product name: Hss End Mill Aluminum
Product material: High speed steel
Tips: Prices fluctuate with raw materials and exchange rates, leave your contact information, the first time to give you a latest quotation.

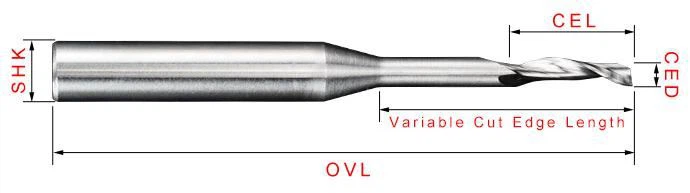

Product Spesification
| NO | SHK | CED | CEL | OVL |
| krxcncs1-7-1 | 8 | 3 | 12 | 60 |
| krxcncs1-7-2 | 8 | 4 | 14 | 60 |
| krxcncs1-7-3 | 8 | 5 | 14 | 60 |
| krxcncs1-7-4 | 8 | 6 | 14 | 60 |
| krxcncs1-7-5 | 8 | 7 | 14 | 60 |
| krxcncs1-7-6 | 8 | 4 | 14（35） | 80 |
| krxcncs1-7-7 | 8 | 5 | 14（35） | 80 |
| krxcncs1-7-8 | 8 | 6 | 14（35） | 80 |
| krxcncs1-7-9 | 8 | 7 | 14（35） | 80 |
| krxcncs1-7-10 | 8 | 8 | 14 | 80 |
| krxcncs1-7-11 | 8 | 8 | 20 | 80 |
| krxcncs1-7-12 | 8 | 5 | 16（45） | 100（90) |
| krxcncs1-7-13 | 8 | 6 | 16（45） | 100（90) |
| krxcncs1-7-14 | 8 | 8 | 16 | 100 |
| krxcncs1-7-15 | 8 | 8 | 30 | 100 |
| krxcncs1-7-16 | 8 | 8 | 30（70） | 100 |
| krxcncs1-7-17 | 8 | 8 | 30 | 120 |
| krxcncs1-7-18 | 10 | 8 | 14 | 80 |
| krxcncs1-7-19 | 10 | 10 | 14 | 80 |
| krxcncs1-7-20 | 10 | 10 | 30 | 100 |
| krxcncs1-7-21 | 10 | 10 | 30 | 120 |
| krxcncs1-7-22 | 12 | 12 | 16 | 80 |
| krxcncs1-7-23 | 12 | 12 | 30 | 100 |
| krxcncs1-7-24 | 12 | 12 | 30 | 120 |
Product application:
Aluminium alloy doors and windows, curtain walls, plastic steel profiles, aluminium plates, etc.
Product advantages:
1, Adopt single edge large chip discharge groove design, add special edge belt, chip discharge smoothly, smooth cutting without burr.
2, Quality assurance, large inventory.
3, Whole rod grinding, high precision processing.
4, High quality packaging, better protect the cutting tool from damage.
5, You can select DLC coating, make products more attractive to customers with ruggedness.
6, Suggest spindle speed: 6000-7000RPM, feed speed: 2m/min
FAQ:
1, Q: What’s your advantages ?
A: We have 5 Axis machine imported Germany and best material with high precision and sharp tip, and also testing department.
