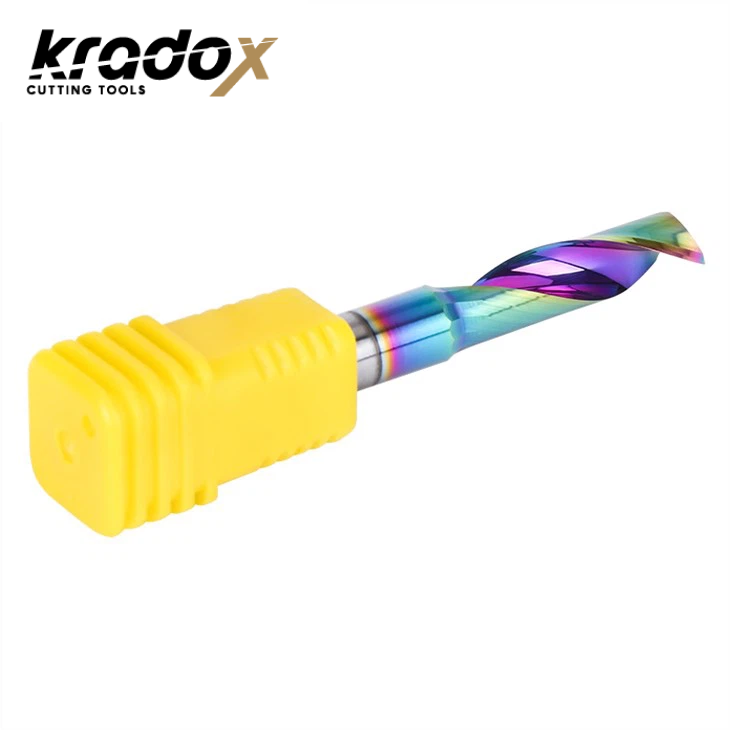

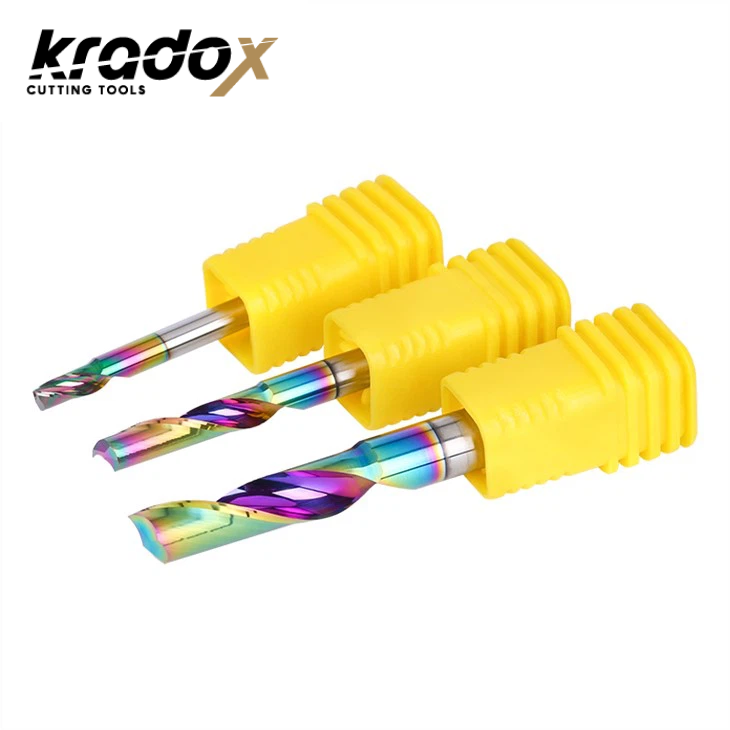

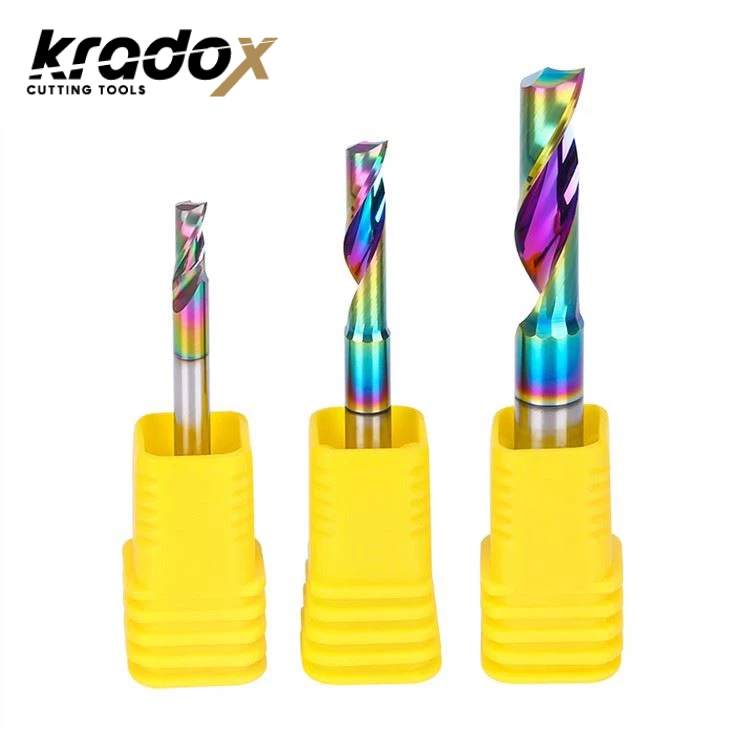

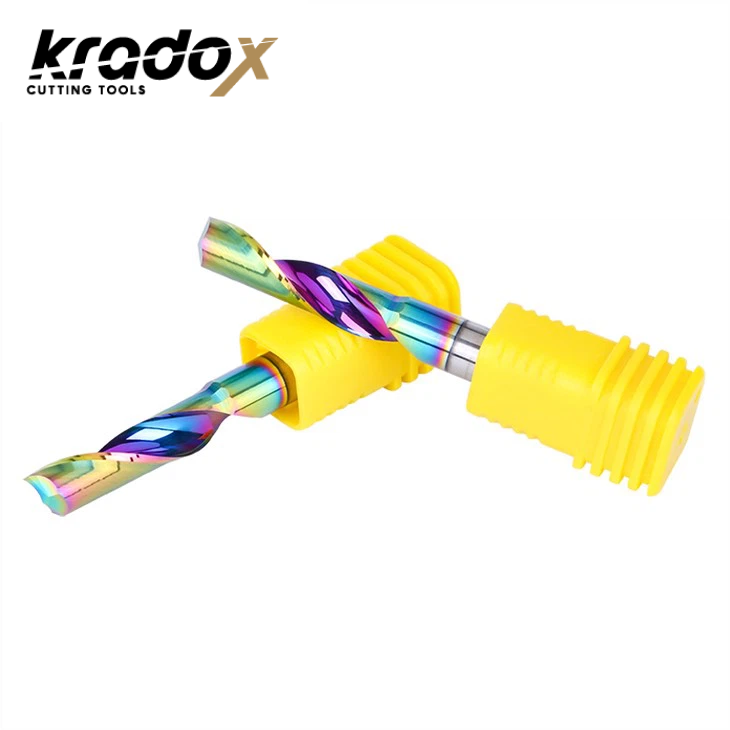

Product name: Single Flute End Mill Coating for Aluminum
Product material: Tungsten steel alloy
Tips: Prices fluctuate with raw materials and exchange rates, leave your contact information, the first time to give you a latest quotation.

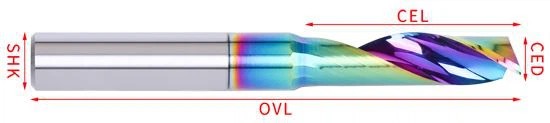

Product Spesification
| NO | SHK | CED | CEL | OVL |
| krxcncs1-11-1 | 3.175 | 1 | 3 | 38 |
| krxcncs1-11-2 | 3.175 | 1.5 | 5 | 38 |
| krxcncs1-11-3 | 3.175 | 2 | 4 | 38 |
| krxcncs1-11-4 | 3.175 | 2 | 6 | 38 |
| krxcncs1-11-5 | 3.175 | 2 | 8 | 38 |
| krxcncs1-11-6 | 3.175 | 2.5 | 4 | 38 |
| krxcncs1-11-7 | 3.175 | 2.5 | 6 | 38 |
| krxcncs1-11-8 | 3.175 | 2.5 | 8 | 38 |
| krxcncs1-11-9 | 3.175 | 3.175 | 6 | 38 |
| krxcncs1-11-10 | 3.175 | 3.175 | 7 | 38 |
| krxcncs1-11-11 | 3.175 | 3.175 | 12 | 38 |
| krxcncs1-11-12 | 3.175 | 3.175 | 17 | 38 |
| krxcncs1-11-13 | 4 | 4 | 8 | 45 |
| krxcncs1-11-14 | 4 | 4 | 10 | 45 |
| krxcncs1-11-15 | 4 | 4 | 12 | 45 |
| krxcncs1-11-16 | 4 | 4 | 15 | 45 |
| krxcncs1-11-17 | 4 | 4 | 17 | 45 |
| krxcncs1-11-18 | 4 | 4 | 22 | 45 |
| krxcncs1-11-19 | 6 | 6 | 12 | 50 |
| krxcncs1-11-20 | 6 | 6 | 17 | 50 |
| krxcncs1-11-21 | 6 | 6 | 22 | 50 |
| krxcncs1-11-22 | 8 | 8 | 22 | 60 |
| krxcncs1-11-23 | 8 | 8 | 25 | 60 |
| krxcncs1-11-24 | 10 | 10 | 25 | 75 |
| krxcncs1-11-25 | 10 | 10 | 32 | 75 |
| krxcncs1-11-26 | 10 | 10 | 42 | 85 |
| krxcncs1-11-27 | 12 | 12 | 35 | 75 |
| krxcncs1-11-28 | 12 | 12 | 42 | 80 |
Product application:
Cutting Aluminium Alloy, Copper Alloy, Magnesium Alloy.
Product advantages:
1, Selection of tungsten steel: Imported raw materials ensure the quality of cutters.
2, The cutting edge adopts inner arc design to reduce the wear in cutting and make the cutting tip more sharp and durable.
3, Fine grinding spiral groove, avoid cutters sticking, greatly improve production efficiency.
4, 0.6um microparticle tungsten steel carbide, make it more stable.
