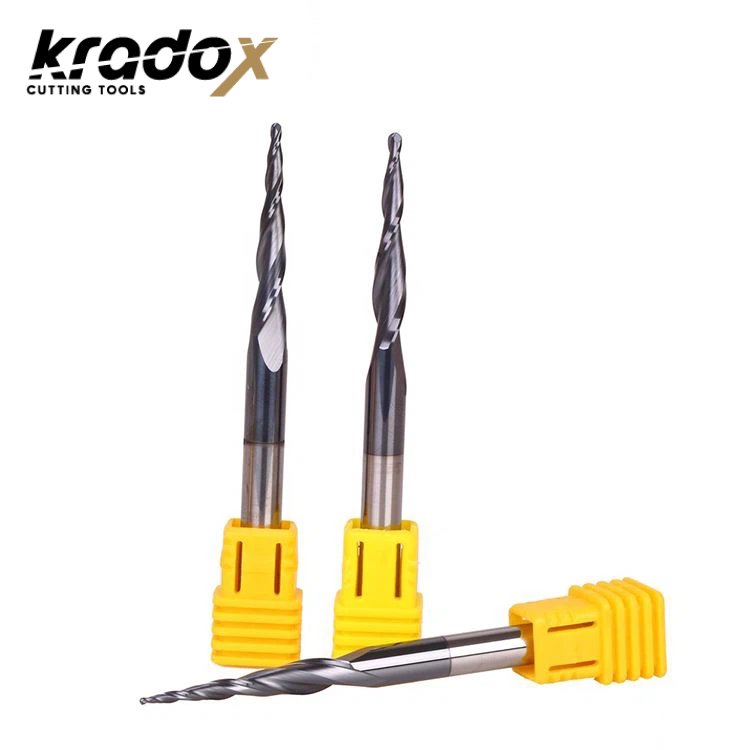

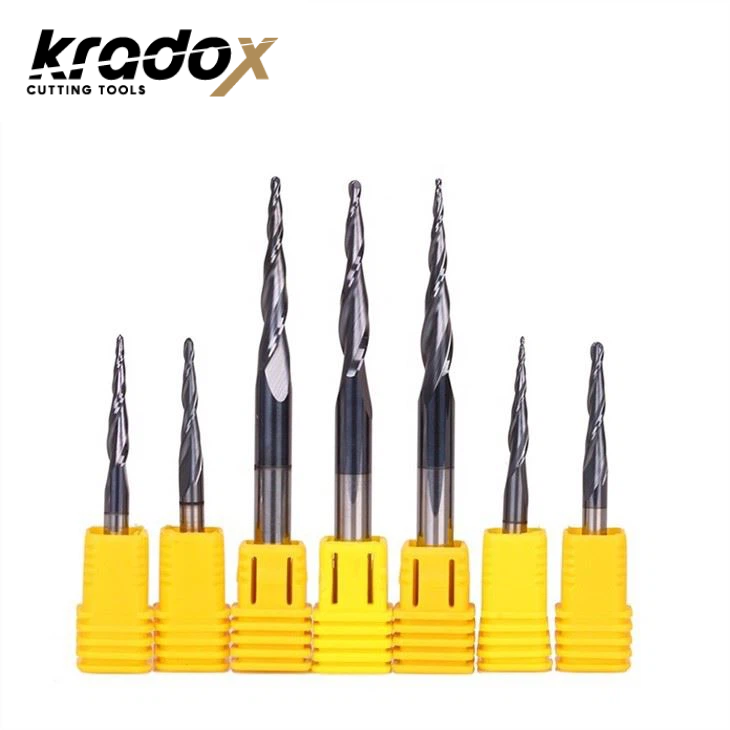

Product name: Tapered Ball Nose End Mill
Product material: Tungsten steel alloy
Tips: Prices fluctuate with raw materials and exchange rates, leave your contact information, the first time to give you a latest quotation.
Product Spesification

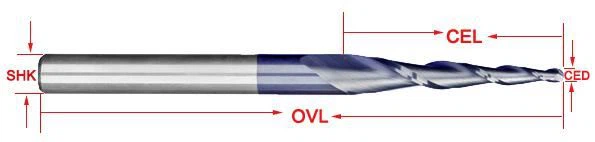

| NO | SHK | 1/2 CED | CEL | OVL |
| krxcncs5-2-1 | 3.175 | 0.25 | 15 | 38.5 |
| krxcncs5-2-2 | 3.175 | 0.5 | 15 | 38.5 |
| krxcncs5-2-3 | 3.175 | 0.75 | 15 | 38.5 |
| krxcncs5-2-4 | 3.175 | 1 | 15 | 38.5 |
| krxcncs5-2-5 | 4 | 0.25 | 15 | 50 |
| krxcncs5-2-6 | 4 | 0.5 | 15 | 50 |
| krxcncs5-2-7 | 4 | 0.75 | 15 | 50 |
| krxcncs5-2-8 | 4 | 1 | 15 | 50 |
| krxcncs5-2-9 | 4 | 0.25 | 20.5 | 50 |
| krxcncs5-2-10 | 4 | 0.5 | 20.5 | 50 |
| krxcncs5-2-11 | 4 | 0.75 | 20.5 | 50 |
| krxcncs5-2-12 | 4 | 1 | 20.5 | 50 |
| krxcncs5-2-13 | 6 | 0.25 | 20.5 | 50 |
| krxcncs5-2-14 | 6 | 0.5 | 20.5 | 50 |
| krxcncs5-2-15 | 6 | 0.75 | 20.5 | 50 |
| krxcncs5-2-16 | 6 | 1 | 20.5 | 50 |
| krxcncs5-2-17 | 6 | 0.25 | 30.5 | 75 |
| krxcncs5-2-18 | 6 | 0.5 | 30.5 | 75 |
| krxcncs5-2-19 | 6 | 0.75 | 30.5 | 75 |
| krxcncs5-2-20 | 6 | 1 | 30.5 | 75 |
| krxcncs5-2-21 | 6 | 1.5 | 30.5 | 75 |
| krxcncs5-2-22 | 6 | 2 | 30.5 | 75 |
| krxcncs5-2-23 | 8 | 0.5 | 47 | 85 |
| krxcncs5-2-24 | 8 | 1 | 47 | 85 |
| krxcncs5-2-25 | 8 | 1.5 | 47 | 85 |
| krxcncs5-2-26 | 8 | 2 | 47 | 85 |
| krxcncs5-2-27 | 8 | 0.5 | 60 | 100 |
| krxcncs5-2-28 | 8 | 1 | 60 | 100 |
| krxcncs5-2-29 | 8 | 1.5 | 60 | 100 |
| krxcncs5-2-30 | 8 | 2 | 60 | 100 |
| krxcncs5-2-31 | 10 | 2 | 70 | 110 |
| krxcncs5-2-32 | 12 | 2 | 70 | 120 |
Product application:
Can cut Aluminum, Brass, Bronze, Composite, Fiberglass, Polyethylene (PE) Foam, Phenolics, Plastics, Polyurethane Foam, PVC, Sign Board, Tooling Board.
Product advantages:
1, The tapered design provides added strength to the bit while still maintaining a small radius at the bit’s tip.
2, Coating for increased durability long service life. Decreasing the times of changing cutters. Saving production time.
3, This unique design provides clearance when routing 3D profiles and allows you to create complex carvings in all kinds of stock.

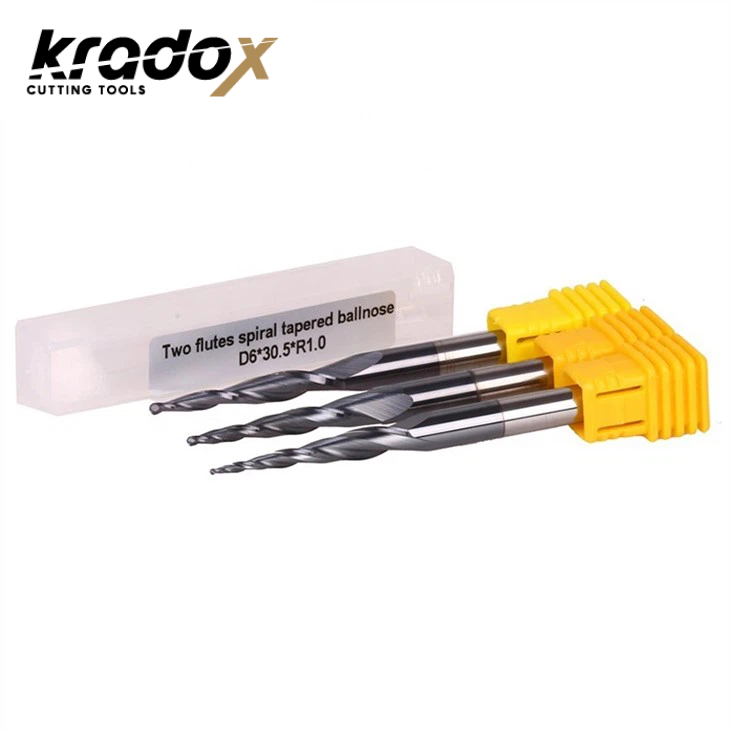

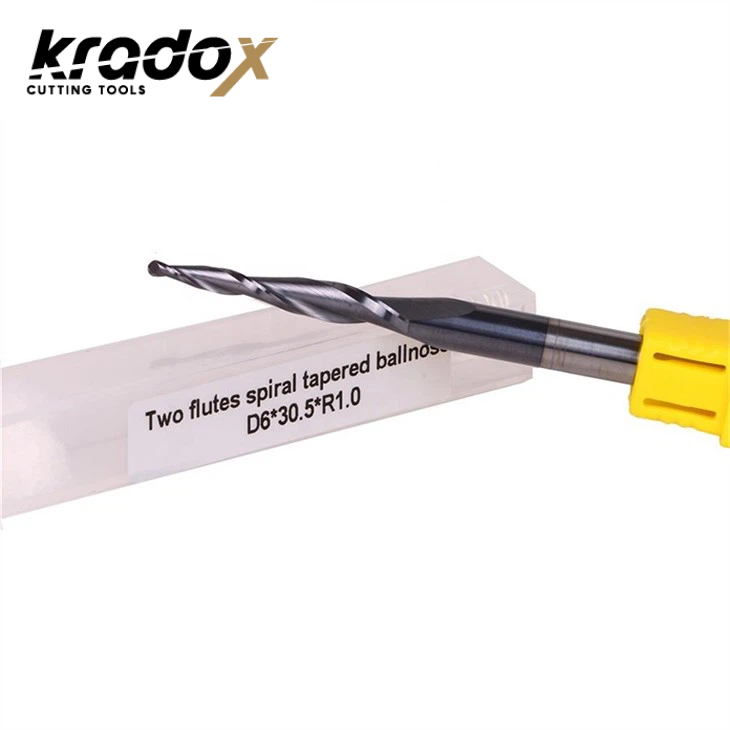

4, One plastic pipe packs one piece, 10 pieces per group.
