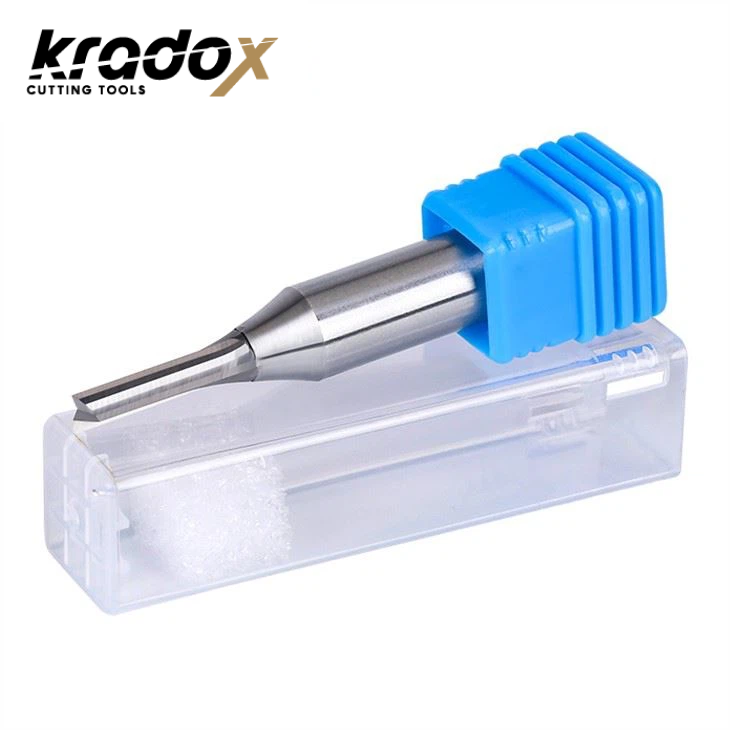

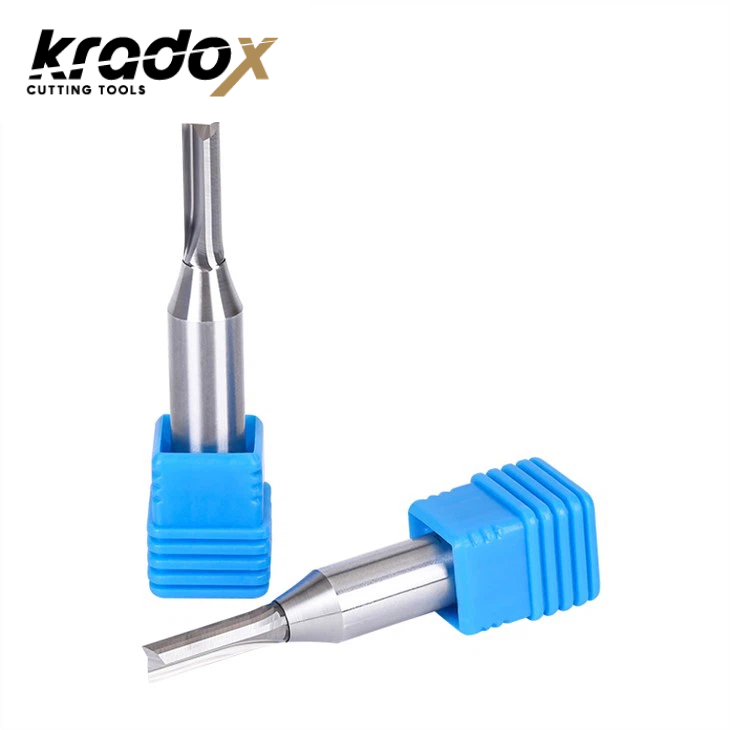

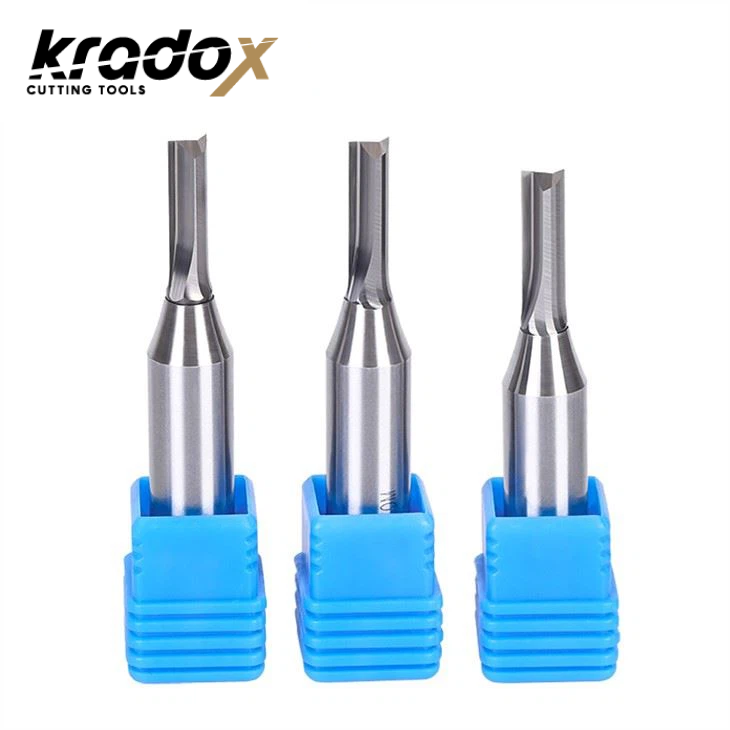

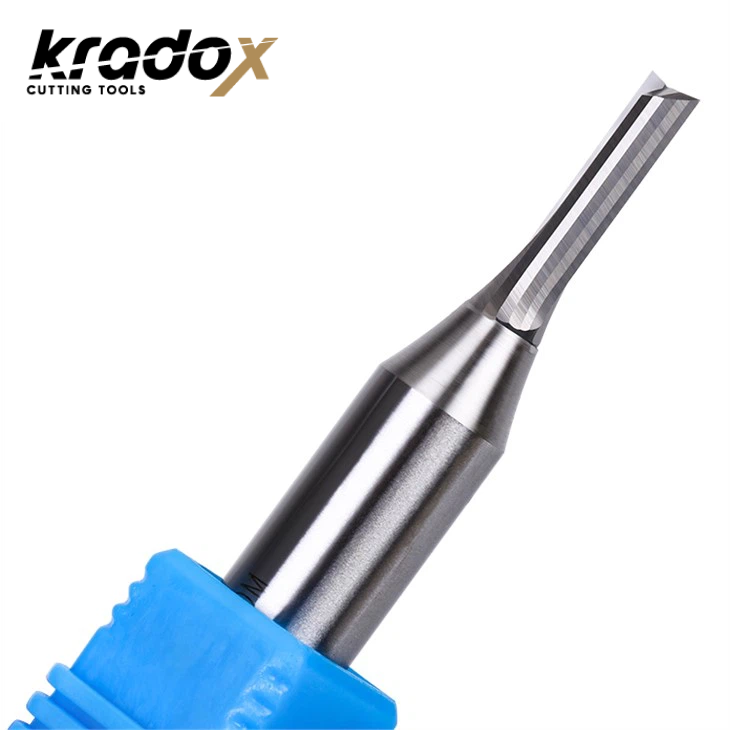

Product name: TCT Straight Router Bits
Product material: Tungsten carbide
Tips: Prices fluctuate with raw materials and exchange rates, leave your contact information, the first time to give you a latest quotation.
Product Spesification
| CED(mm) | CEL(mm) | SHK(mm) | CED(mm) | CEL(mm) | |
| krxcncs2-5-1 | 1 | 5 | 6.35/12.7 | 6 | 24 |
| krxcncs2-5-2 | 1.5 | 5 | 6.35/12.7 | 6 | 25 |
| krxcncs2-5-3 | 2 | 5 | 6.35/12.7 | 6 | 26 |
| krxcncs2-5-4 | 2 | 8 | 6.35/12.7 | 6 | 28 |
| krxcncs2-5-5 | 2.5 | 8 | 6.35/12.7 | 6 | 30 |
| krxcncs2-5-6 | 3 | 8 | 6.35/12.7 | 6 | 32 |
| krxcncs2-5-7 | 3 | 10 | 6.35/12.7 | 6 | 35 |
| krxcncs2-5-8 | 3 | 12 | 6.35/12.7 | 6 | 38 |
| krxcncs2-5-9 | 3 | 15 | 6.35/12.7 | 7 | 20 |
| krxcncs2-5-10 | 3 | 18 | 6.35/12.7 | 7 | 22 |
| krxcncs2-5-11 | 3 | 20 | 6.35/12.7 | 7 | 25 |
| krxcncs2-5-12 | 4 | 12 | 6.35/12.7 | 7 | 28 |
| krxcncs2-5-13 | 4 | 15 | 6.35/12.7 | 7 | 30 |
| krxcncs2-5-14 | 4 | 18 | 6.35/12.7 | 8 | 20 |
| krxcncs2-5-15 | 4 | 20 | 6.35/12.7 | 8 | 22 |
| krxcncs2-5-16 | 4 | 22 | 6.35/12.7 | 8 | 24 |
| krxcncs2-5-17 | 4 | 23 | 6.35/12.7 | 8 | 25 |
| krxcncs2-5-18 | 4 | 24 | 6.35/12.7 | 8 | 26 |
| krxcncs2-5-19 | 4 | 26 | 6.35/12.7 | 8 | 28 |
| krxcncs2-5-20 | 4 | 28 | 6.35/12.7 | 8 | 30 |
| krxcncs2-5-21 | 4 | 30 | 6.35/12.7 | 8 | 32 |
| krxcncs2-5-22 | 5 | 13 | 6.35/12.7 | 8 | 35 |
| krxcncs2-5-23 | 5 | 15 | 6.35/12.8 | 8 | 40 |
| krxcncs2-5-24 | 5 | 20 | 6.35/12.9 | 8 | 45 |
| krxcncs2-5-25 | 5 | 22 | 6.35/12.10 | 8 | 50 |
| krxcncs2-5-26 | 5 | 25 | 6.35/12.11 | 9 | 20 |
| krxcncs2-5-27 | 5 | 26 | 6.35/12.12 | 9 | 30 |
| krxcncs2-5-28 | 5 | 28 | 6.35/12.13 | 10 | 20 |
| krxcncs2-5-29 | 5 | 30 | 6.35/12.14 | 10 | 25 |
| krxcncs2-5-30 | 5 | 33 | 6.35/12.15 | 10 | 30 |
| krxcncs2-5-31 | 5 | 35 | 6.35/12.16 | 10 | 35 |
| krxcncs2-5-32 | 6 | 15 | 6.35/12.17 | 10 | 40 |
| krxcncs2-5-33 | 6 | 20 | 6.35/12.18 | 10 | 50 |
| krxcncs2-5-34 | 6 | 22 | 6.35/12.19 | 10 | 60 |
Product application:
Engraving and cutting fine, Acrylic, PVC, Nylon, Resin, Wood, Plywood.
Product Advantages
1, Whole tungsten steel material fine grinding to make
2, High hardness, high wear resistance,sharp and not easy to break the knife
3, Profeeional technology, good quality, high precision.
4, Enough stock for regular sizes, customized design available
FAQ
1, Q: Can it be used on an electric drill?
A: No, only applicable to machining centers above 20000rpm.
2, Q: How to choose the cutting length of the tool?
A: The cutting length should be 2mm longer than the thickness of the material that you want to cut, such as the thickness of the material you want to cut is 40mm, then you should choose the cutting length of 42mm milling cutter.
