Product name: U Groove Aluminum End Mill
Product material: Tungsten steel alloy
Tips: Prices fluctuate with raw materials and exchange rates, leave your contact information, the first time to give you a latest quotation.

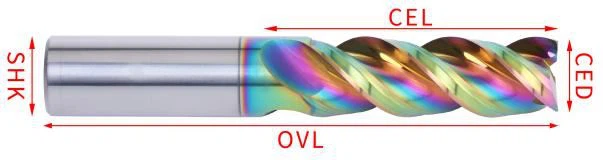

Product Spesification
| SHK | CED | CEL | OVL | |
| krxcncs3-3-1 | 4 | 1 | 3 | 50 |
| krxcncs3-3-2 | 4 | 1.5 | 4.5 | 50 |
| krxcncs3-3-3 | 4 | 2 | 6 | 50 |
| krxcncs3-3-4 | 4 | 2.5 | 7.5 | 50 |
| krxcncs3-3-5 | 4 | 3 | 9 | 50 |
| krxcncs3-3-6 | 4 | 3.5 | 10 | 50 |
| krxcncs3-3-7 | 4 | 4 | 12 | 50 |
| krxcncs3-3-8 | 6 | 6 | 18 | 50 |
| krxcncs3-3-9 | 6 | 6 | 30 | 100 |
| krxcncs3-3-10 | 8 | 8 | 24 | 60 |
| krxcncs3-3-11 | 8 | 8 | 30 | 75 |
| krxcncs3-3-12 | 8 | 8 | 35 | 100 |
| krxcncs3-3-13 | 10 | 10 | 30 | 75 |
| krxcncs3-3-14 | 10 | 10 | 40 | 100 |
| krxcncs3-3-15 | 12 | 12 | 36 | 75 |
| krxcncs3-3-16 | 12 | 12 | 45 | 100 |
Product application:
Aluminum alloy, copper alloy, magnesium alloy.
Product advantages:
1, Special U-Type design: Material removal rate (MRR) and surface finishes are greatly improved due to effective chip removal at high rate.
2, Strong tooth with double relief angles: Excellent production rates become 100% possible due to the improvement of tooth hardness.
3, Sharp aluminum alloy tooth design applicable 3 for roughing and finishing.
